Once eBPF is configured, you can explore the eBPF analytics through the OpsRamp UI.

From Infrastructure Section

  1. Navigate to Infrastructure > eBPF Analytics in the OpsRamp portal.
  2. The eBPF Configuration Analytics page will be displayed.
  3. Select the Cluster, Namespace, and Pod to view network visibility insights.

From Search Section

  1. Navigate to Infrastructure > Search in the portal.
  2. Click on a Kubernetes 2.0 Cluster.
  3. Select Pods to view the pod list.
  4. On the resource page, click the arrow symbol next to a pod.
  5. In the resource details screen, click the three-dot icon to access the menu.
  6. Select eBPF Analytics from the menu to open the eBPF Dashboard.

Using Search Option

  1. Navigate to Infrastructure > Search.
  2. Click on the Search icon.
  3. Search resources with filter: NativeType = “k8s pod”.
  4. Click a pod, then use the three-dot menu to open eBPF Analytics.

Important Note for Trace Services

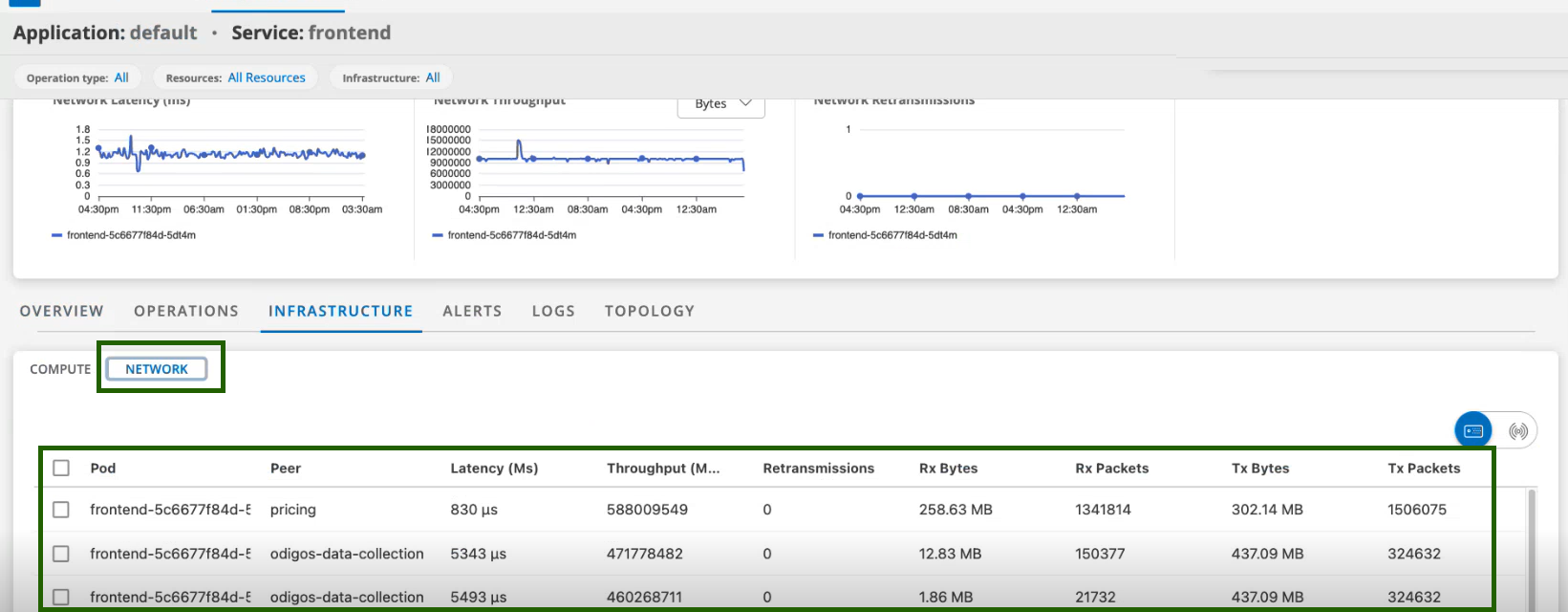

Once the eBPF feature is enabled, you will notice the following new changes in Trace Services under Infrastructure > Traces:

  • Three additional graphs: Network Latency, Network Throughput, and Network Retransmission will appear alongside the existing graphs.

  • A new Network option will be available under the Infrastructure section for a particular service. Click on it to view the detailed network information.
